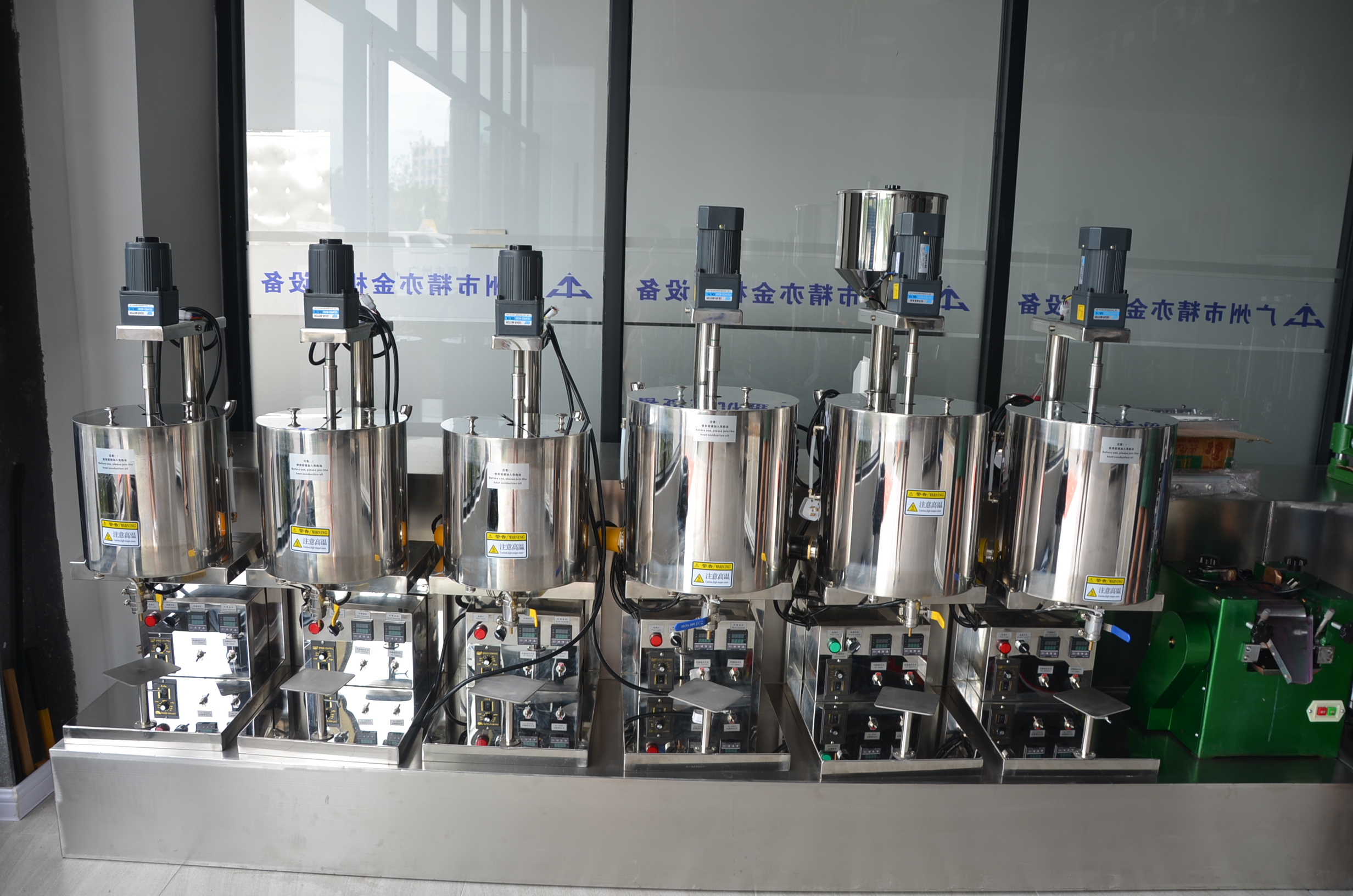

Lipstick Production Line Lipstick Filling Machine 20ml Silver Stainless Steel

Description:

Lipstick filling machine is suitable for filling lipstick, lipstick, and other paste raw materials.

1. The material barrel is a double-layer barrel, the sandwich and thermal oil to heat the material body, using the motor stirring, can effectively control the mixing speed, make the material body 360 degrees heat evenly, independent material barrel number display temperature control effectively control the raw material heating temperature

2. The material nozzle is equipped with a separate heating temperature control, and the corresponding temperature can be set according to the demand to make the filling more stable.

3. The filling table can be lifted and lowered by 100mm for convenient filling

4. The machine is practical and convenient, easy to operate, convenient to change color and high efficiency.

Technical Specification:

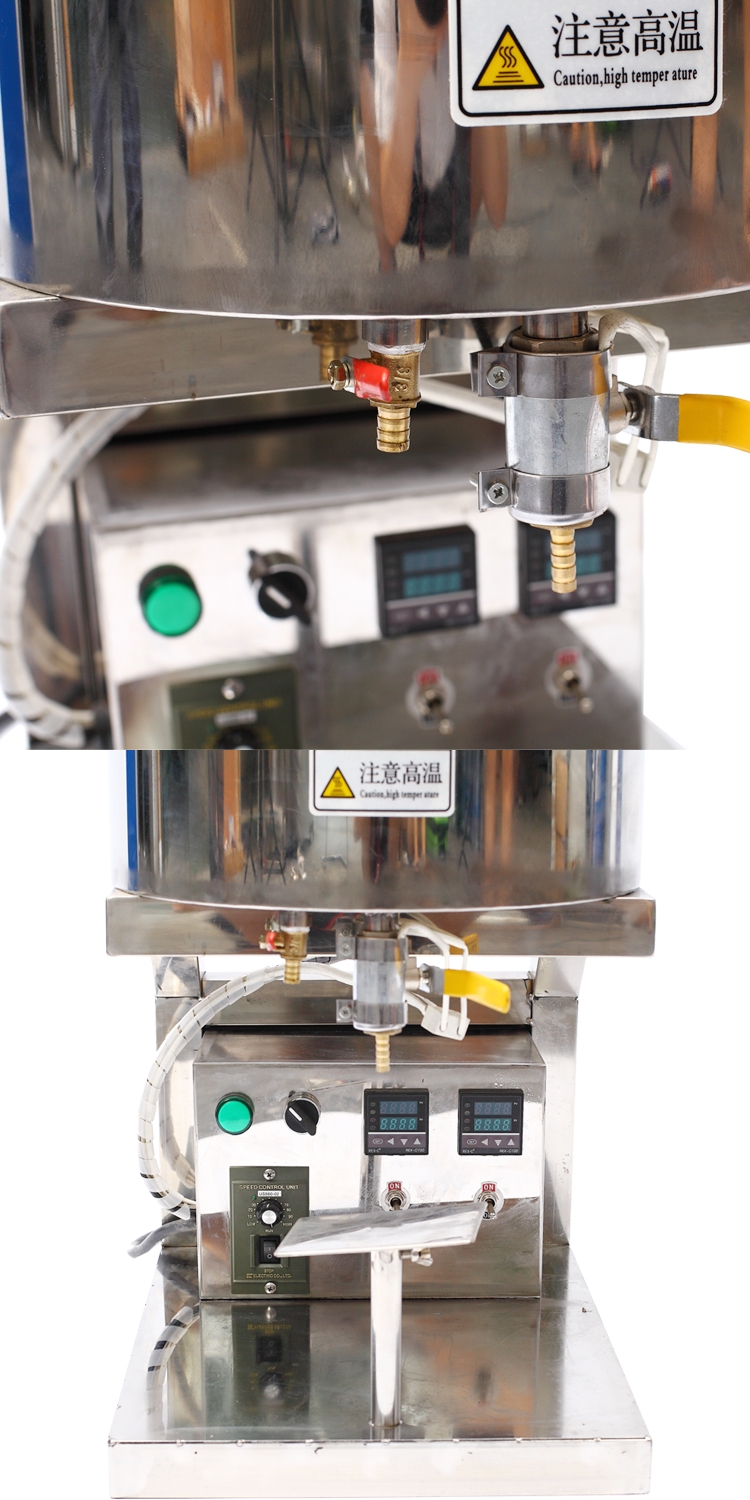

Uses Directions:

A. Power switch: turn on or off the power of the machine.
B. Drum temperature control switch: turn on or off the power of drum heating circuit.
C. 24-hour relay: it can be set to energize the machine at a certain time and disconnect it at a certain time. For example, it can be automatically heated one hour in advance before going to work in the morning.
D. Discharge port temperature control switch: turn on or off the power supply of the discharge port heating circuit.
E. Stirring motor speed control: control the stirring speed and switch of the stirring motor. F. Message display: PV (red) shows the system measured value that is the actual temperature, SV (green) shows the system set value that is the set temperature.
G, OUT indicator: input indicator that heating indicator; AT indicator: PID automatic algorithm indicator; ALM1 indicator: Alarm 1 indicator; ALM2 indicator: Alarm 2 indicator
H, SET key: setting, mode key, press this key can enter or exit the temperature and other parameters of the setting; ▼ key: reduce key; ▲ key: increase key; ← key: cursor movement key, press this key to move the number of digits need to modify the value.
I. Time relay: control the filling time.

Packing:
