Brand Name : | JYJ |
Model Number : | JY-CL-GS |
Certification : | CE,ISO |
Price : | Negotiable |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 1/7 Days |
Delivery Time : | 15 work days |
Description:

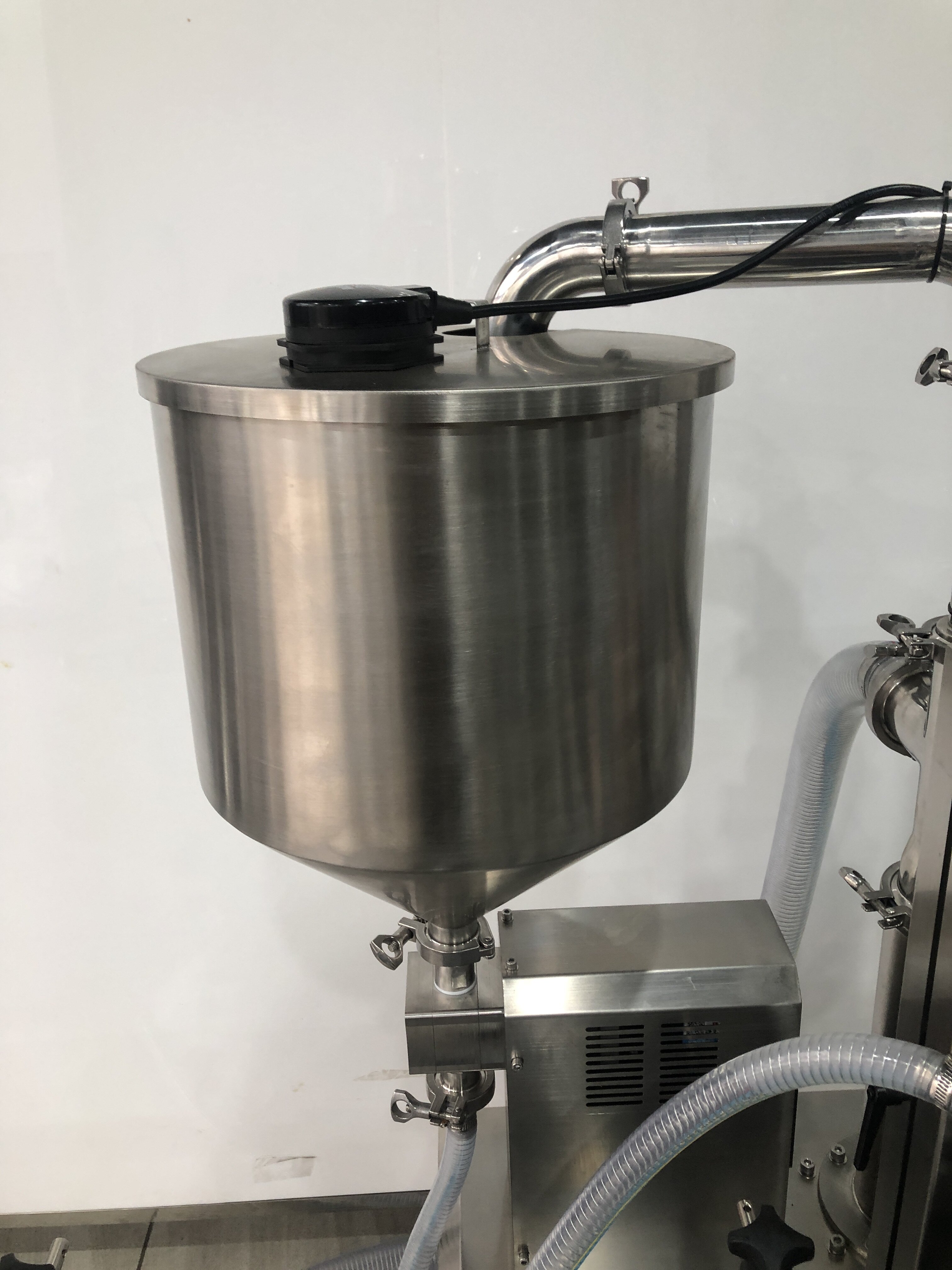

Servo single-head gear filling machine is a filling machine for creams, lotions, essential oils, lotions, etc. The operation is fully automatic and the filling speed is fast.
Uses and Function:
Equipment use procedures:Automatic or manual bottle loading--Automatic filling--Automatic or manual capping--Automatic cap locking.
Full-automatic multi-function filling machine is widely used in cosmetics, food, medicine, chemical raw materials and other industries.The machine has many advantages,such as:filling speed is fast, multi-purpose machine, foolproof operation interface, accurate quantitative, small footprint, simple cleaning, wide range of use, servo motor control, stable and trouble-free, can be equipped with automatic feeding function, long service life, no need to debug to the factory to make.
Technical parameters:
30-50 grams | 60-100 beats/minute |
100-300 grams | 45-80 beats/minute |
500-1000 grams | 30-45 beats/minute |
4 liters | Around 2000 per hour |
Main Configurations:
Pneumatic configuration | Sophus |
servo motor | Inovance |
servo drive | Inovance |

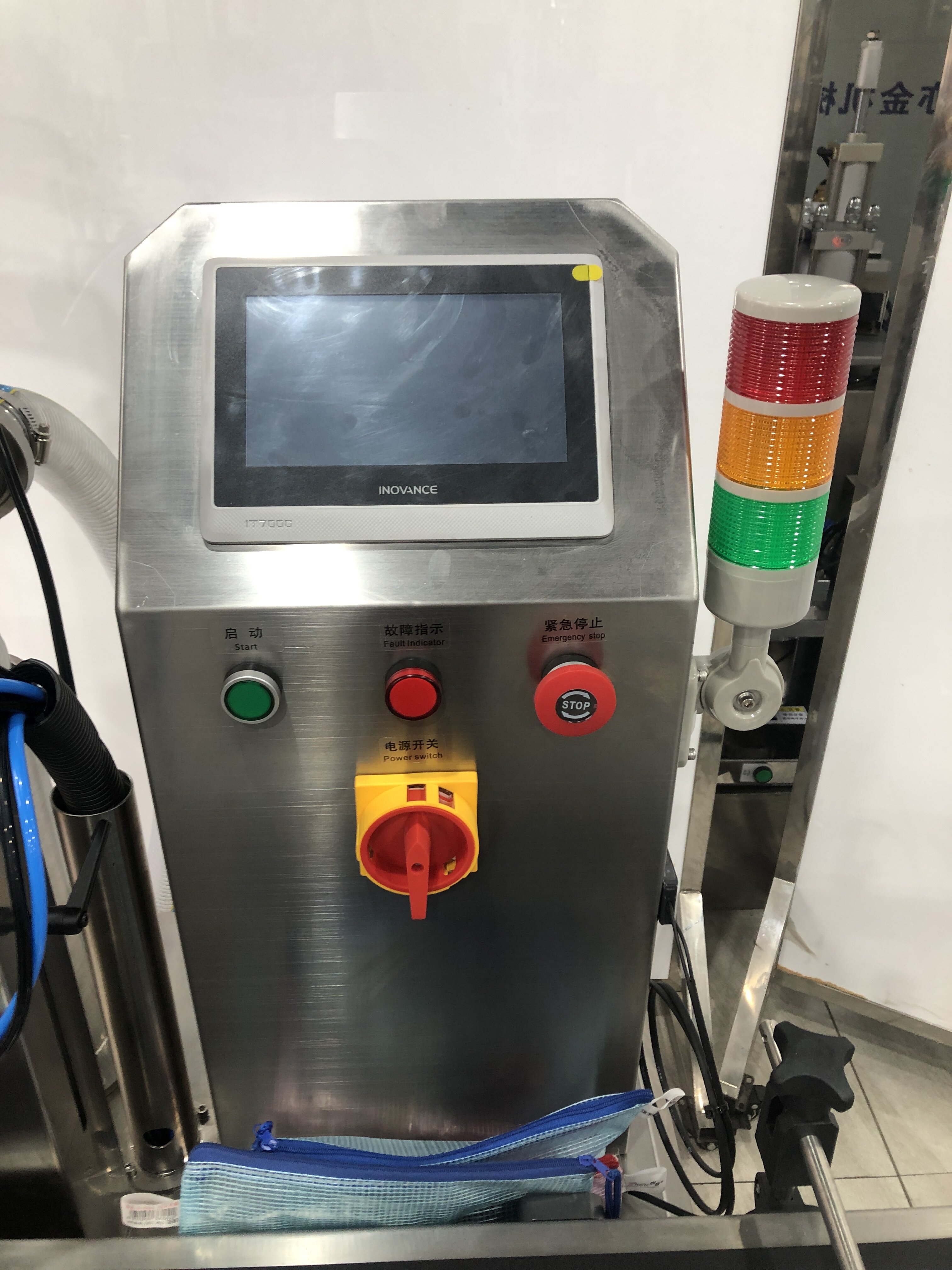

touchscreens | Inovance |
PLC | Inovance |
solenoids | Sophus |
rlays | C-LIN |
Photoelectric sensors | Matsushita |
material | 304 |
filling head | single head |
filling quantity | unlimited |
![]() |
