    Servo Double Head Filling Machine For Creams 5KW 80L Drum Volume

    Ask Lasest Price
    Brand Name : JYJ
    Model Number : JYSK-C+
    Certification : CE,ISO
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1/7 Days
    Delivery Time : 15 work days
    • Product Details
    • Company Profile

    Servo Double Head Filling Machine For Creams 5KW 80L Drum Volume

    Servo double head gear pump Individual heating quantitative filling machine


    Description:

    Servo double-head gear pump filling machine is a filling machine with double barrels ,which can be independently heated and quantitatively filled.It can be matched with a three-meter long conveyor belt for product production, which is equipped with an infrared sensor positioning device for high efficiency and labor-saving.


    Uses and Function:

    1. This production line is suitable for quantitative filling of various kinds of cream/liquid products, such as: cooling oil, essential oil, foundation cream, hair wax, aromatherapy cream, lip film, herbal cream, and other wide-mouth packaging products that need to be heated.
    2. Liftable double-layer drum with stirring and interlayer heating can ensure the raw materials to be heated evenly. Pumps and filling nozzles are heated independently, no heating dead space. Another foot switch can be equipped with automatic or manual according to the product selection.
    3. The servo control gear pump quantitative filling mode, more stable, fast, low noise to make the production environment more comfortable, filling range from 0.5 grams without upper limit, to meet the filling product diversification.
    4.PLC program control, set parameters (filling time, frequency, cleaning, barrel lifting) are set by the display interface, for a variety of types, diversification of users with great practicality and efficiency.
    5. Double servo filling system, independent control, faster speed, higher capacity, can meet different filling needs.


    Technical Parameters:

    Power

    5KW

    Air supply

    0.3-0.8Mpa

    Drum volume

    80L

    Monitor

    Inovance

    Speed control motor

    Servo

    Sizes

    1000*900*1700mm conveyor

    Electric power source

    380V/50Hz

    Production capacity:

    40-140 pcs/min

    PLC

    Inovance

    Stirring motor

    TOYODENKI


    Pictures:

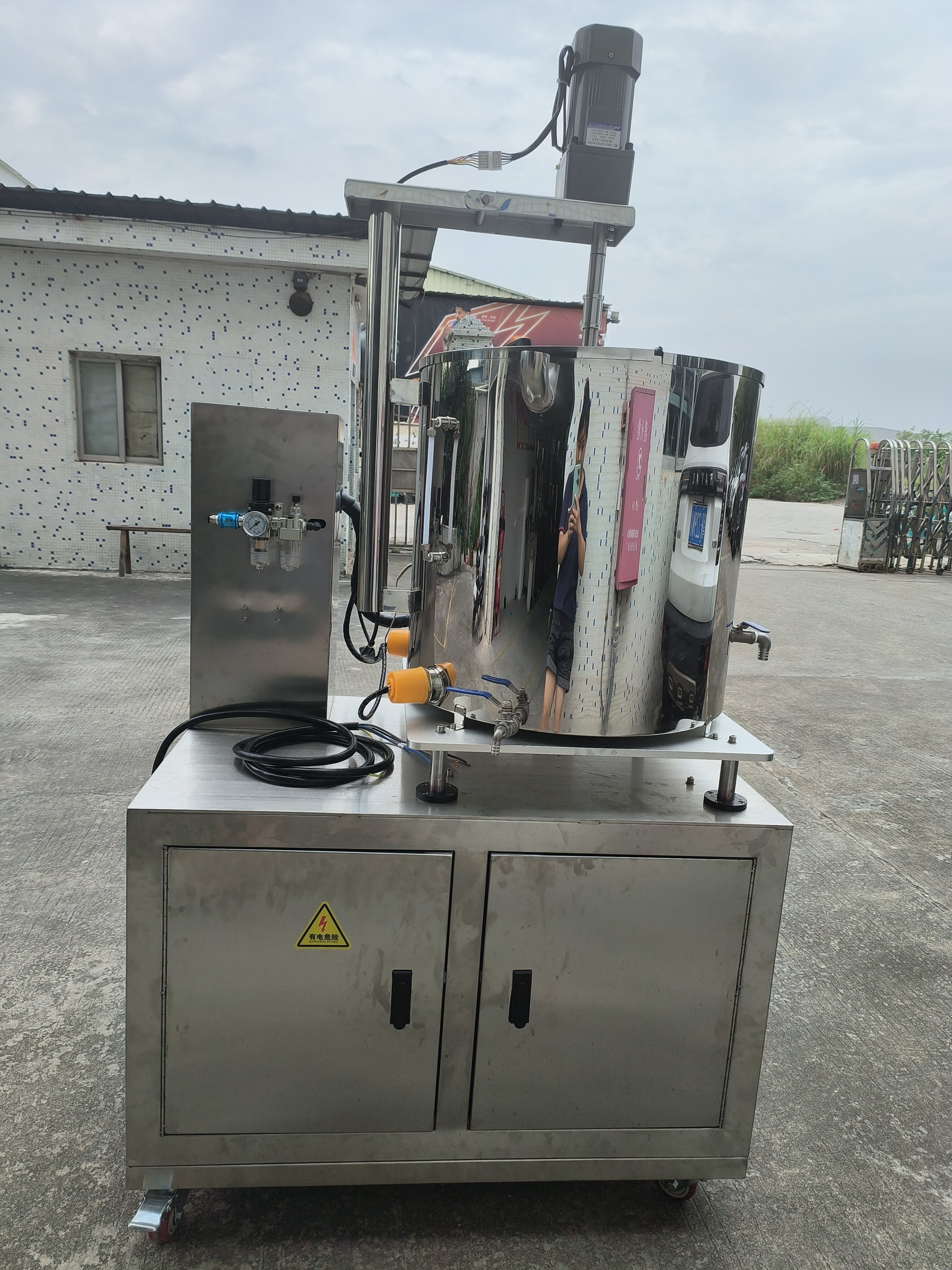

    Quality Servo Double Head Filling Machine For Creams 5KW 80L Drum Volume for sale
